Contact us for more information on this model or any of our other models in stock.

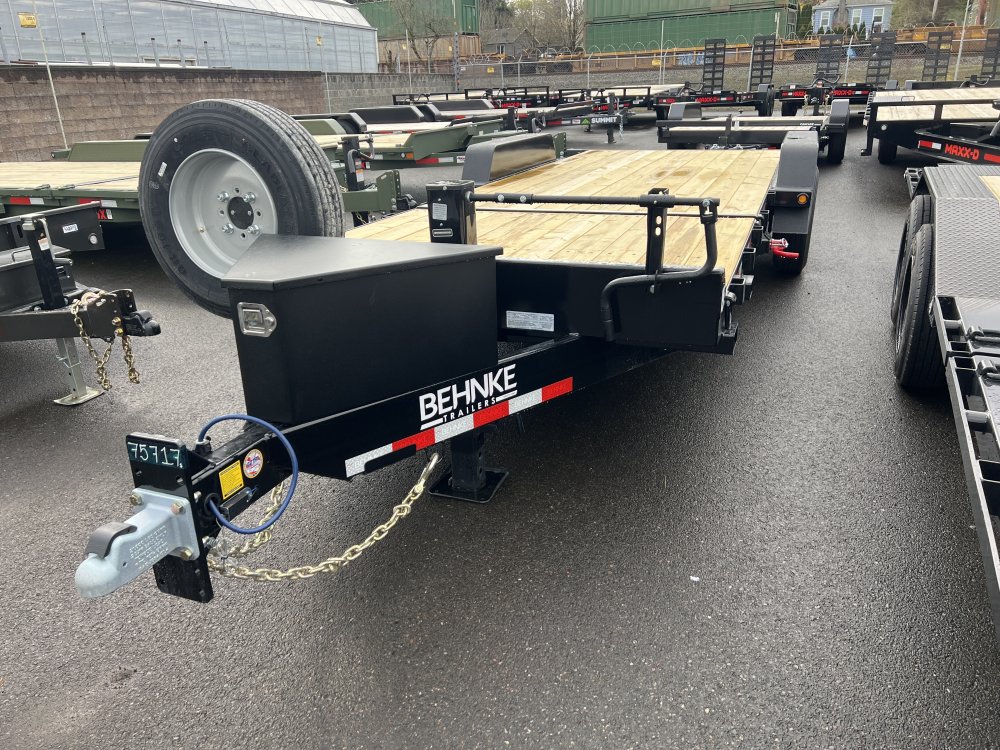

The 20K tube tilt is a beast of a trailer, with no peers in its class, and is equipped with twin 10K torflex axles with 17.5 super single tires. The trailer is built with a heavy duty frame, while still maintaining a full 83" between the fenders and has an added standard option of fender guards. It is available with 2-8' stationary decks, with either 16' or 18' of tilt. Pull-type and gooseneck configurations are available.
Highlights:

• Pre-Blasted, Acid Washed, Zinc Rich Primed, and Powder Coat Finish

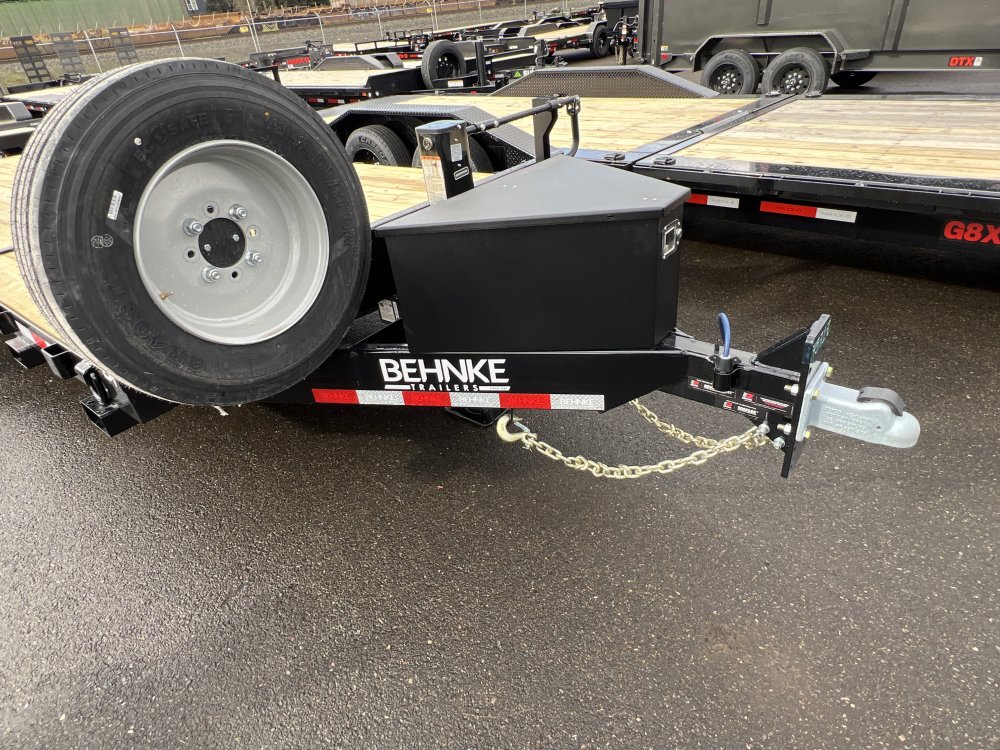

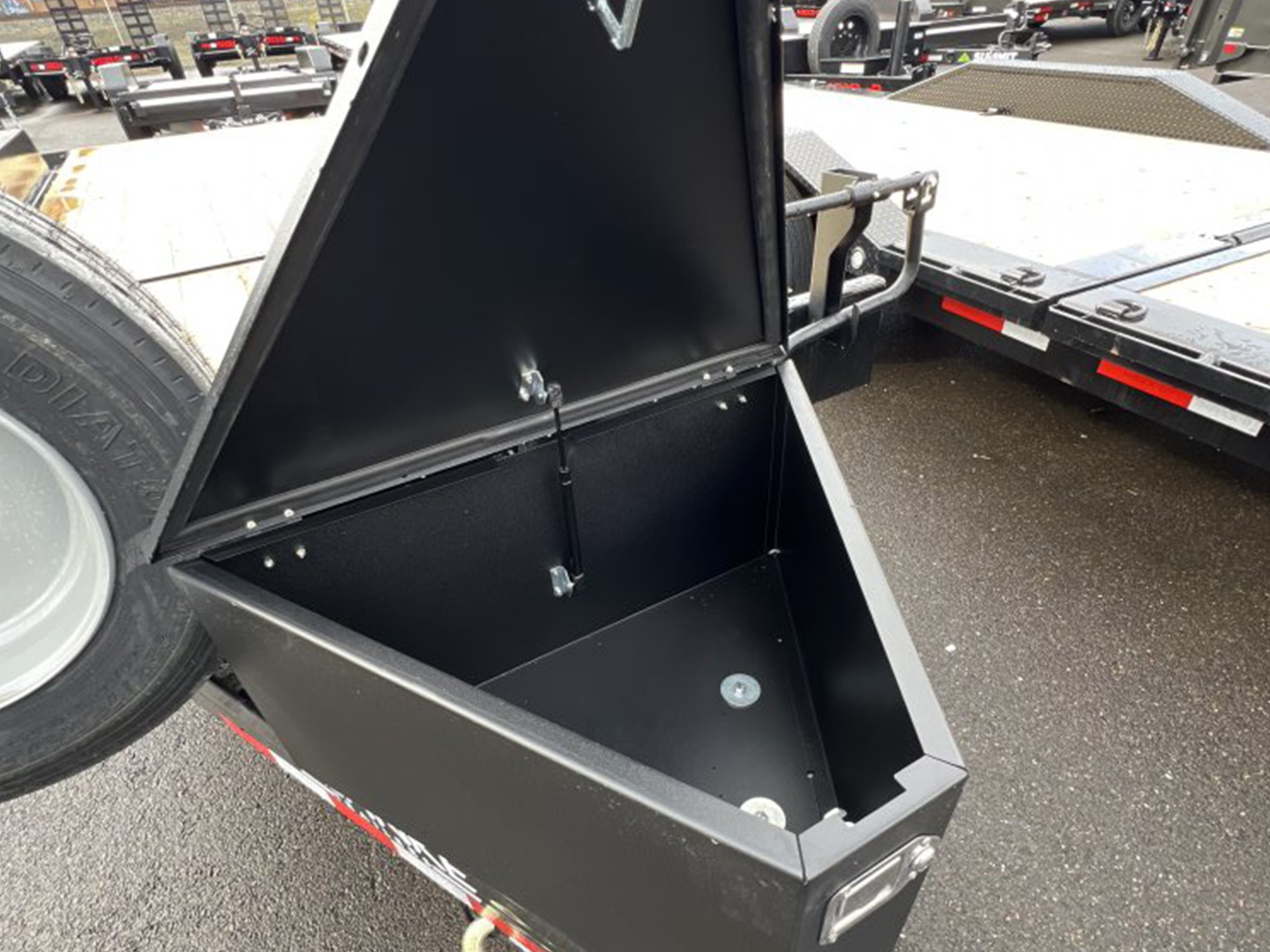

• V-Shaped Tongue Mounted Toolbox
• HD Fully Welded 11 Gauge Fenders
• Flush Mount LED Lights
• 2.5 x 8" Cushioned Cylinder

Trailer Specifications:

• GVWR: 20000 lbs
• Weight: 5300 lbs
• Payload: 14700 lbs
• Axles: 2 x 10K Dexter Torflex Axles
• Deck Height: 25"
• Jack: 10k HD Drop Leg

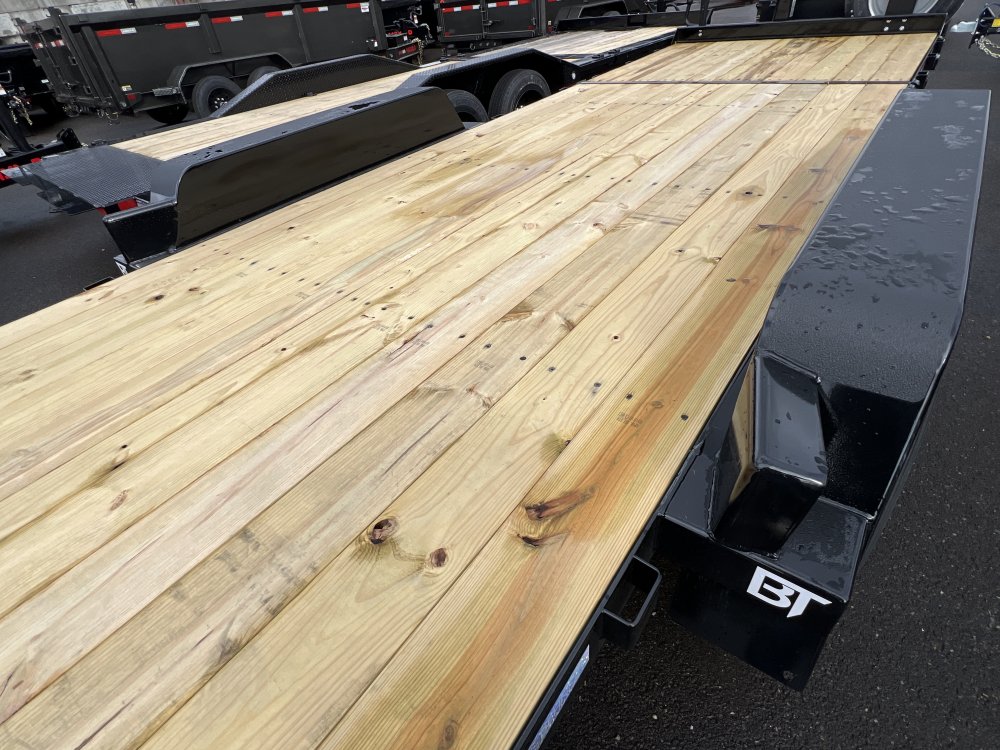

• Floor: 2' x 8' Treated Lumber

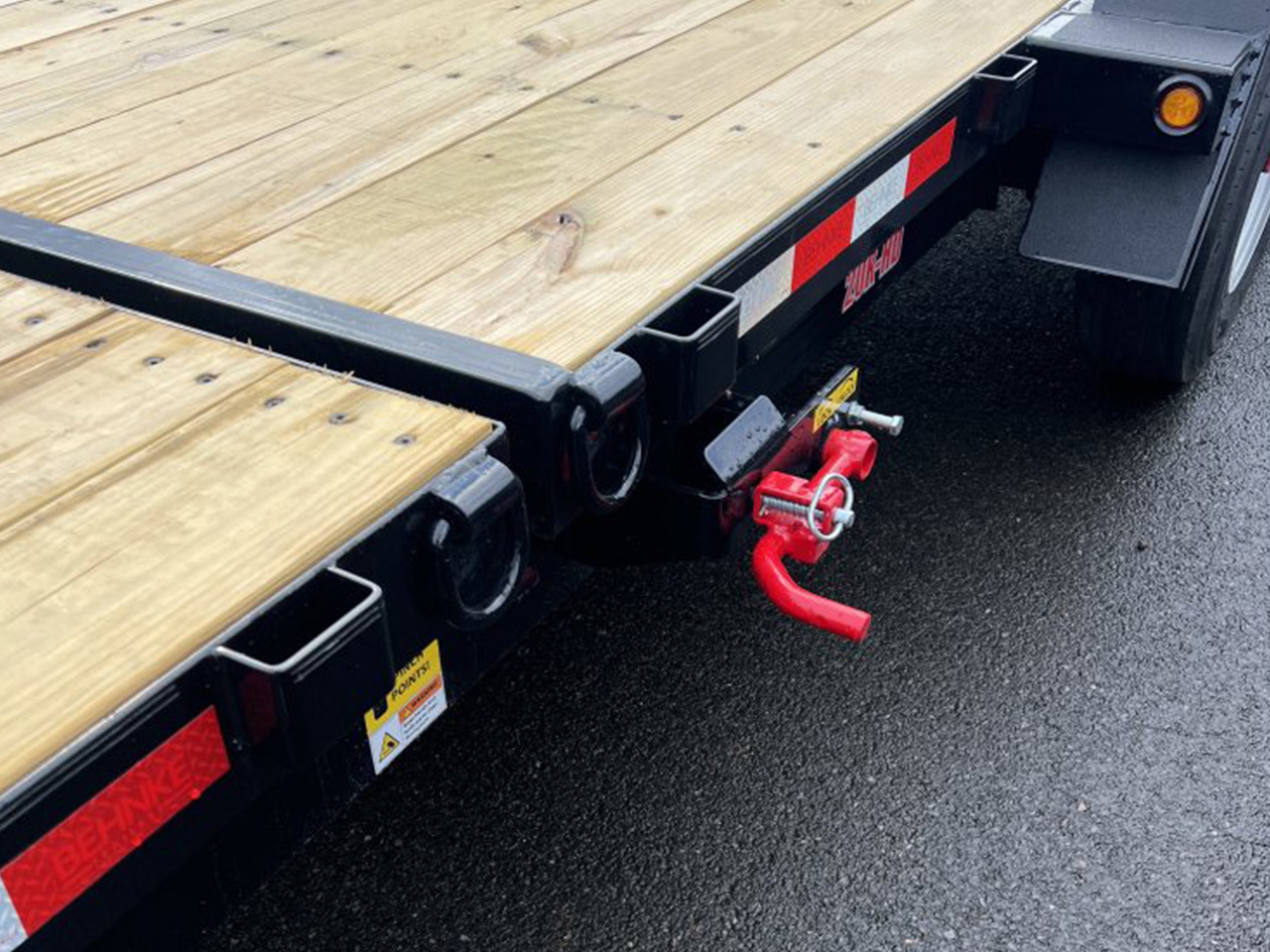

• Connections: Stake Pockets and (8) D-rings
• Frame: Stationary: 8x2 Tube, Tilt: 5 x 3 x1/4 Angle Iron
• Crossmembers: 3" channels on 12" Centers

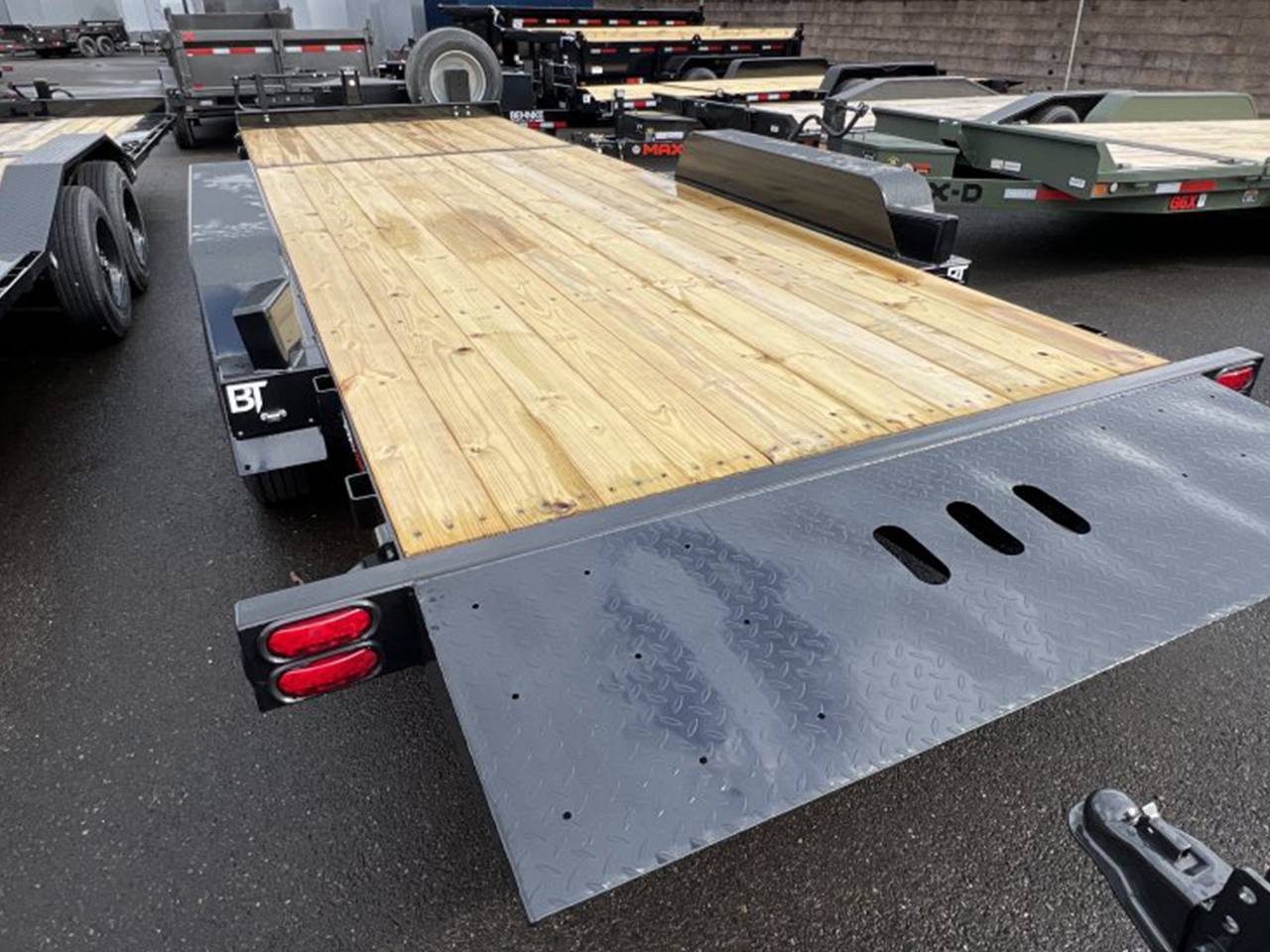

• Rear Approach: 2' Beavertail: 1/8" Tread Plate Knife Edge Tail with Supports Every 7"
• Overall Length: 83"
• Overall Width: 264"
• Coupler: 2 5/16" Adjustable Flat Plate
• Chains: 2 x 3/8" Grade 70 Safety Chains
• Suspension: Torsion

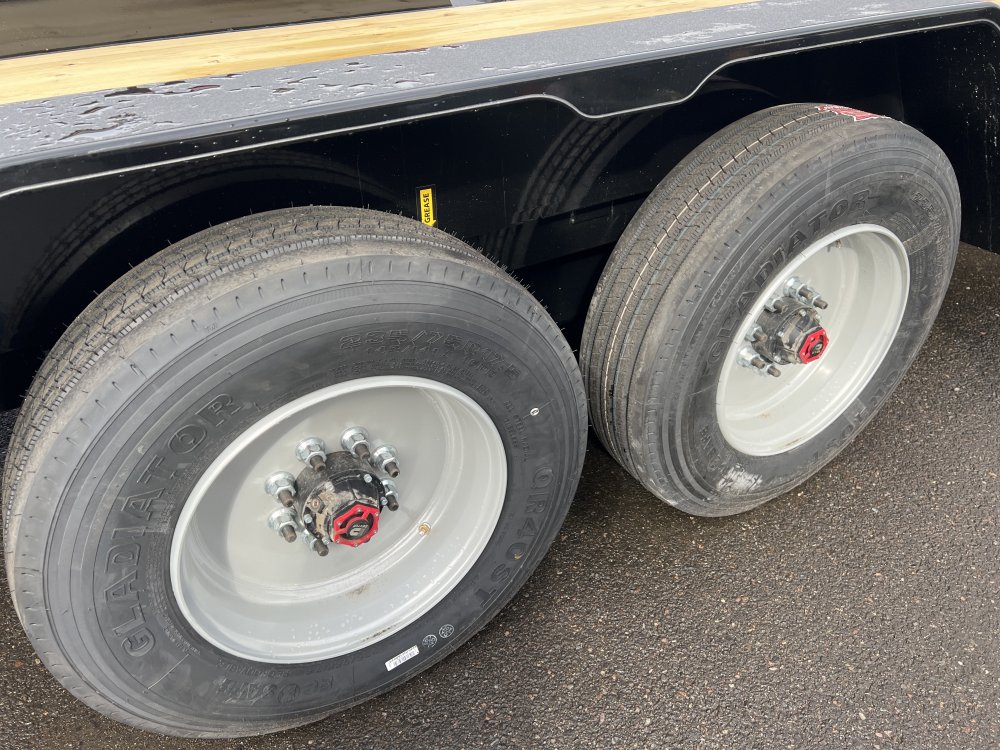

• Tires: 4 x 235/75R/17.5 Super Single, 18-Ply Tire and Wheel
• Spare: Included
• Spare Mount: Included
• Paint: Pre-blasted, acid washed, zinc rich primed, and topped with powder coat
• Plug: 7-Way RV
• Lights: DOT approved all sealed rubber mounted LED

What your spouse and accountant are going to ask you:

- Advertised prices are all-cash sales (cash, debit, personal or certified check)
- Credit cards incur a 3% convenience fee
- WA residents: a $200 negotiable documentation fee may be added
- NO SALES TAX collected for out of state buyers with Two Approved Forms of Identification proving out of State Residency - contact us for details
- Custom orders and deliveries are possible
- Images may display optional items
- VIN available at dealership
- Prices do not include tax, license, or titling fees
- Pricing and specifications may change without notice
- Measurements are estimates and believed to be reasonably accurate

Our trailers sell fast! Make a (refundable) deposit to reserve your trailer today!
