Contact us for more information on this model or any of our other models in stock.

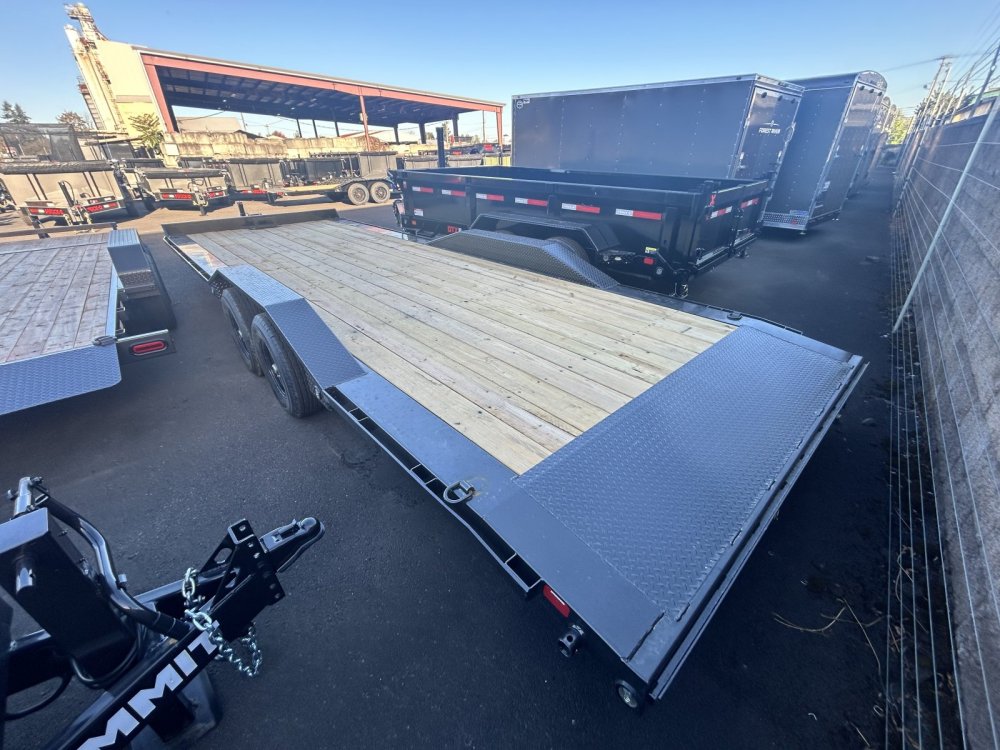

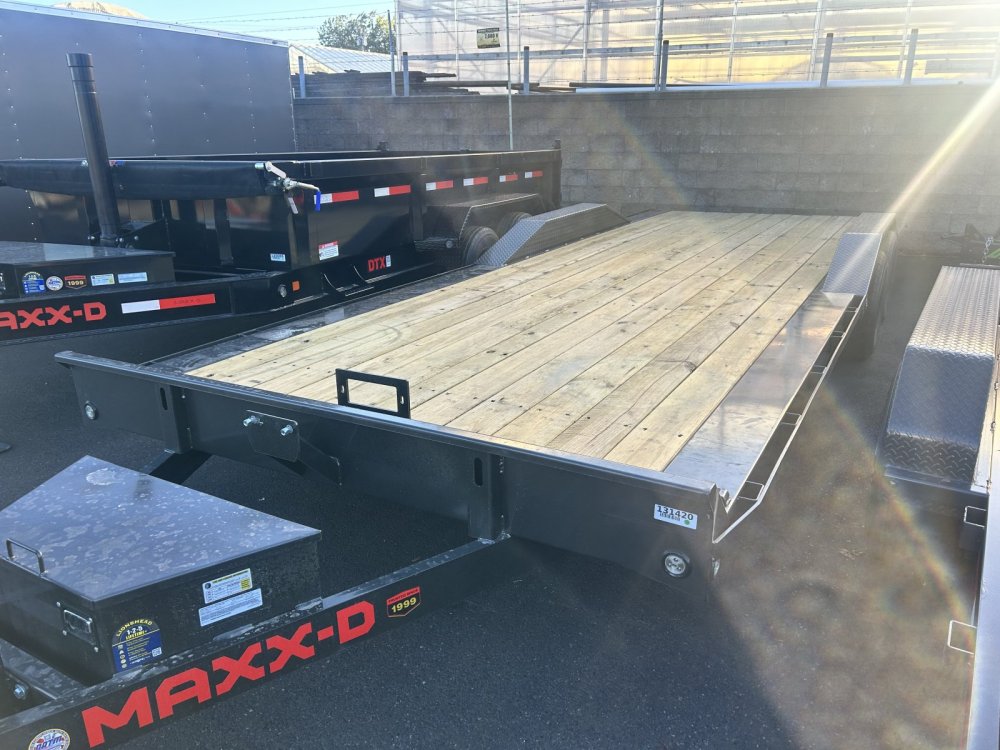

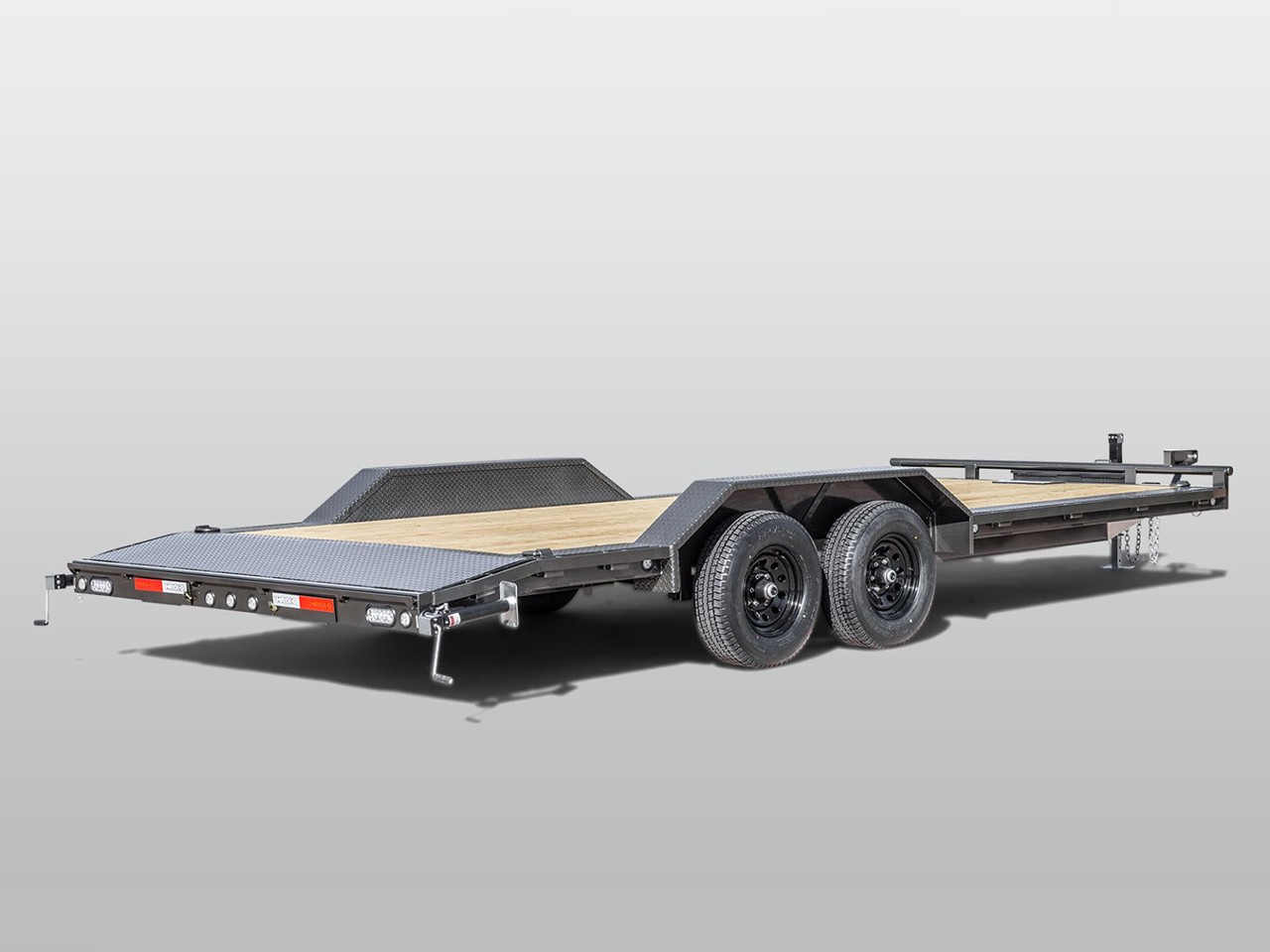

As the lightest of our three stationary trailers with 102" wide decks, the H5X is perfect for dune buggies and similar vehicles. The H5X features a set of rugged diamond plate drive over fenders that extend the full 102" width of the trailer. This allows you to load your ultra wide vehicles like rock crawlers, specialized equipment, and wide lifted trucks by simply driving over the fenders.

The H5X buggy hauler is also ideal for any users wanting additional deck space and ultra-durable fenders that are highly resistant to damage, especially in rough conditions.

Built on a 5" channel frame, the H5X buggy hauler features 3" channel crossmembers spaced on 16" centers. It also includes front-mounted bullnose D-rings and a full-length stake pocket/rub rail system for plenty of options when tying down your vehicles.

MAXX-D also included a rear bumper crafted from steel tubing for the ultimate in wiring protection. This style of bumper won't fill with snow and road salt in adverse conditions.

Like all MAXX-D Trailers, the H5X buggy hauler is finished with industry-leading powder coating process. Six different steps all work together to give your trailer a premium powder-coated steel surface with unmatched durability.

No matter what kind of wide loads you need to haul, MAXX-D has an H5X in a configuration for you. Build something great with an H5X buggy hauler!

Highlights:

• Wireless Remote
• Flushmount LEDs/Standard Wiring

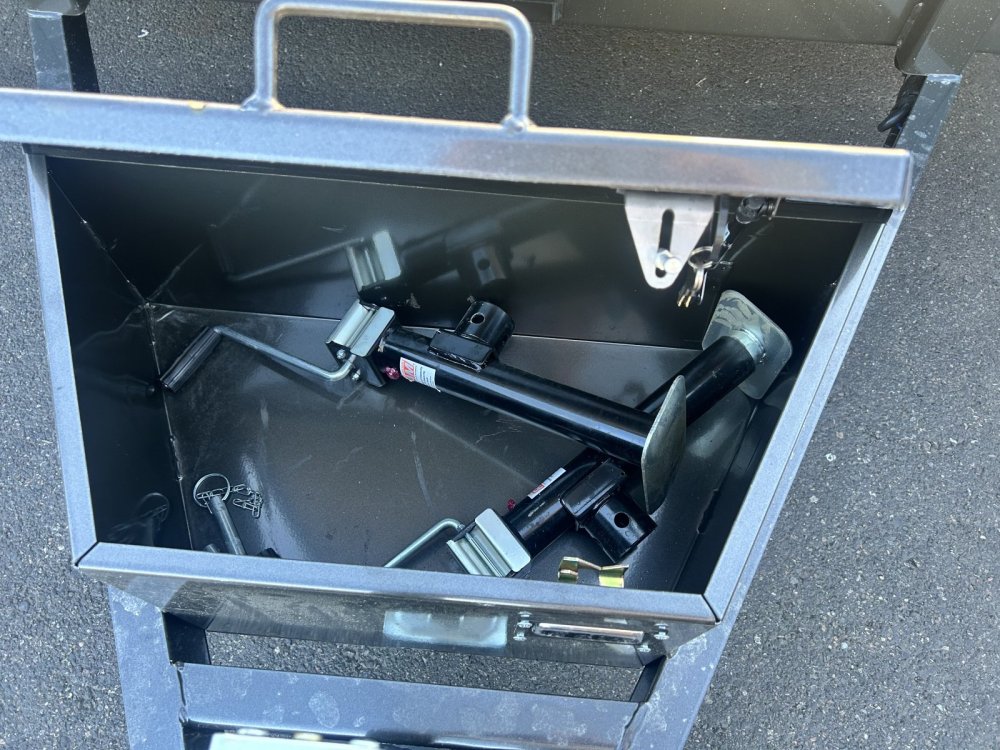

• 6" Channel Wrap Tongue With Toolbox
• Double Broke Diamond Plate Fenders
• 2 x 5.2K Brake Axles

Trailer Specifications:

• GVWR: 10000 lbs
• Weight: 2600 lbs
• Payload: 7400 lbs
• Axles: 2 x 5.2K Brake Axles
• Deck Height: 25.75"
• Jack: 7K Drop-Leg Jack
• Floor: 2x8 Treated Wood Floor
• Connections: Stake Pockets and Rubrail
• Frame: 5x2 3/16" Tube Frame
• Crossmembers: 3" Channel On 16" Centers
• Rear Approach: Knife Edge Rear
• Overall Length: 319"
• Overall Width: 102"

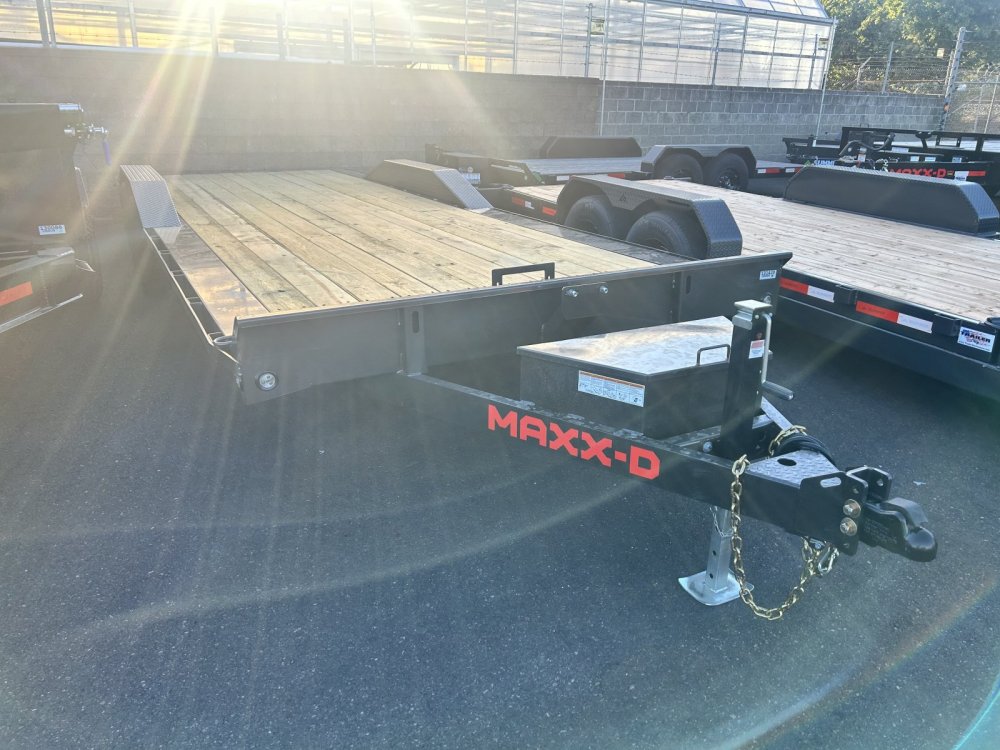

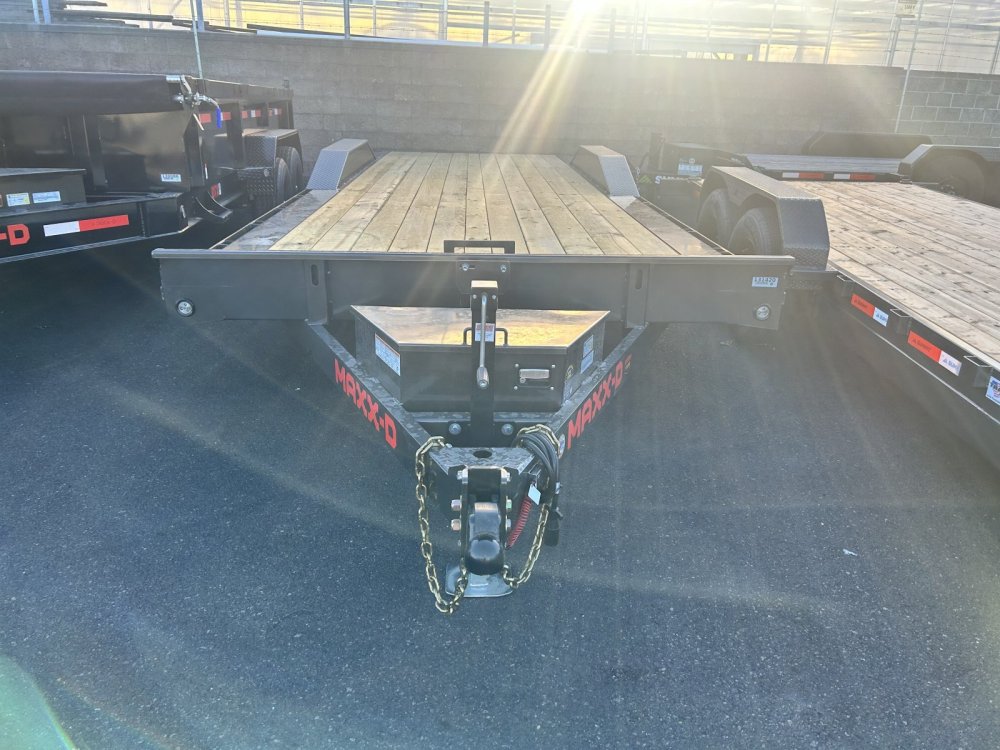

• Tongue: 6" Channel Wrap Tongue With Toolbox
• Coupler: 2 5/16" Adjustable Coupler
• Suspension: Torsion Spring Suspension 22.5* Up On 2 Axles

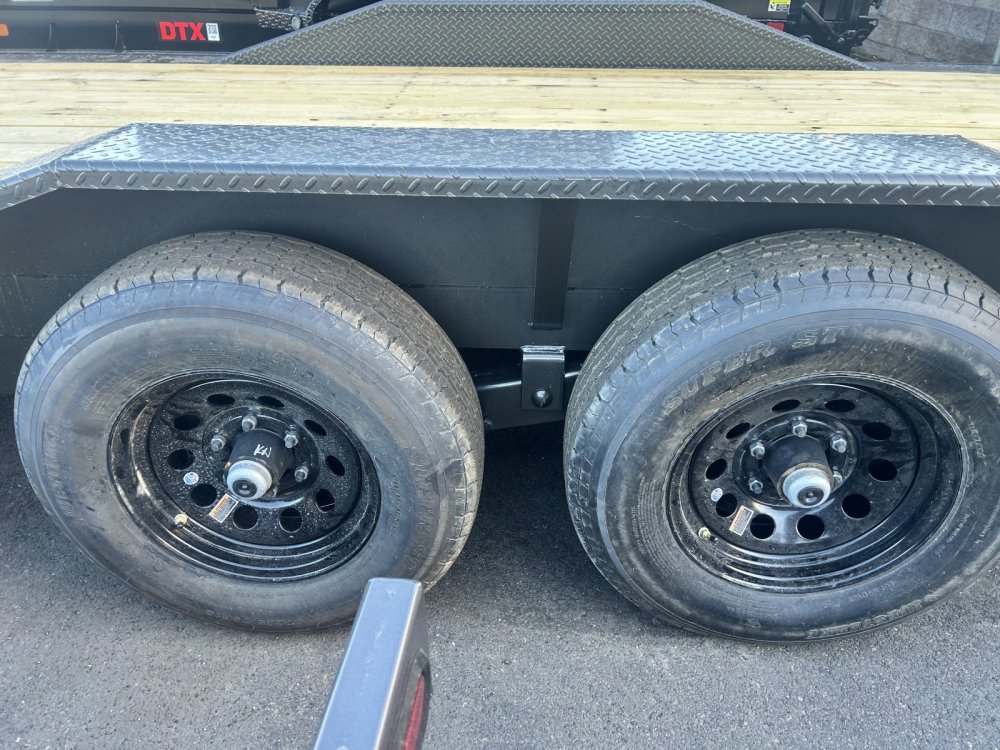

• Tires: ST225/75R15 D Radial Tires
• Spare: Optional
• Spare Mount: Standard
• Brakes: Electric
• Fenders: Double Broke Diamond Plate Drive-Over Fenders
• Paint: Durable powder-coated finish
• Plug: 7 Blade RV Plug
• Lights: Flushmount LEDs with standard wiring
• Warranty: 5-2 Warranty Structure: 5-year frame/structure coverage and 2-year general component coverage.

What your spouse and accountant are going to ask you:

- Advertised prices are all-cash sales (cash, debit, personal or certified check)
- Credit cards incur a 3% convenience fee
- WA residents: a $200 negotiable documentation fee may be added
- NO SALES TAX collected for out of state buyers with Two Approved Forms of Identification proving out of State Residency - contact us for details
- Custom orders and deliveries are possible
- Images may display optional items
- VIN available at dealership
- Prices do not include tax, license, or titling fees
- Pricing and specifications may change without notice
- Measurements are estimates and believed to be reasonably accurate

Our trailers sell fast! Make a (refundable) deposit to reserve your trailer today!
