Contact us for more information on this model or any of our other models in stock.

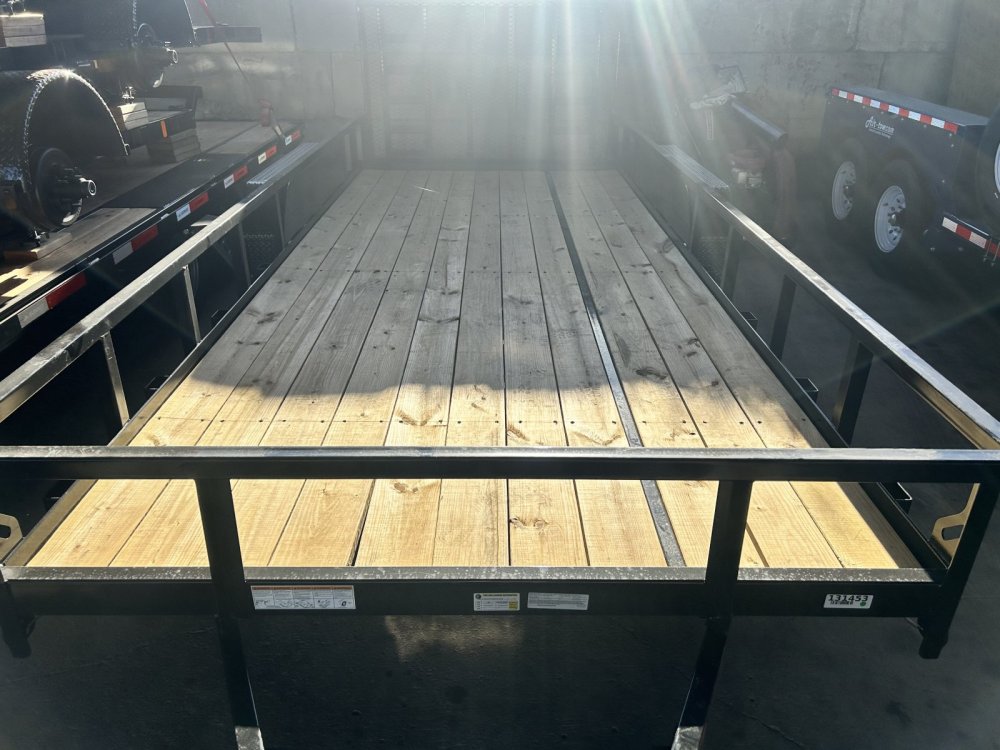

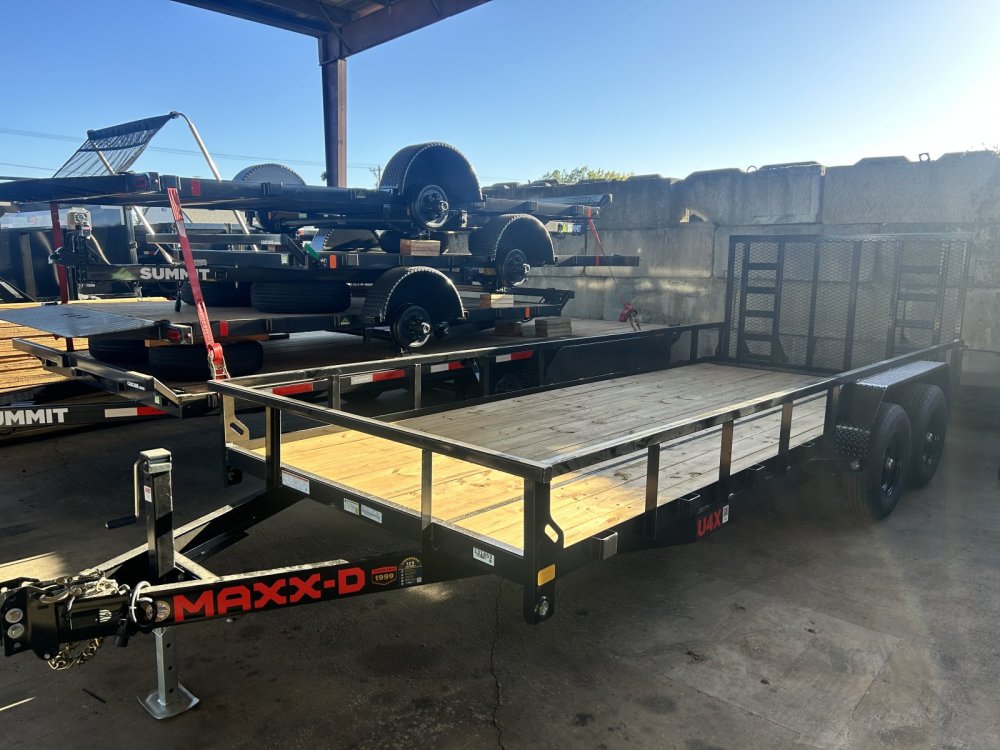

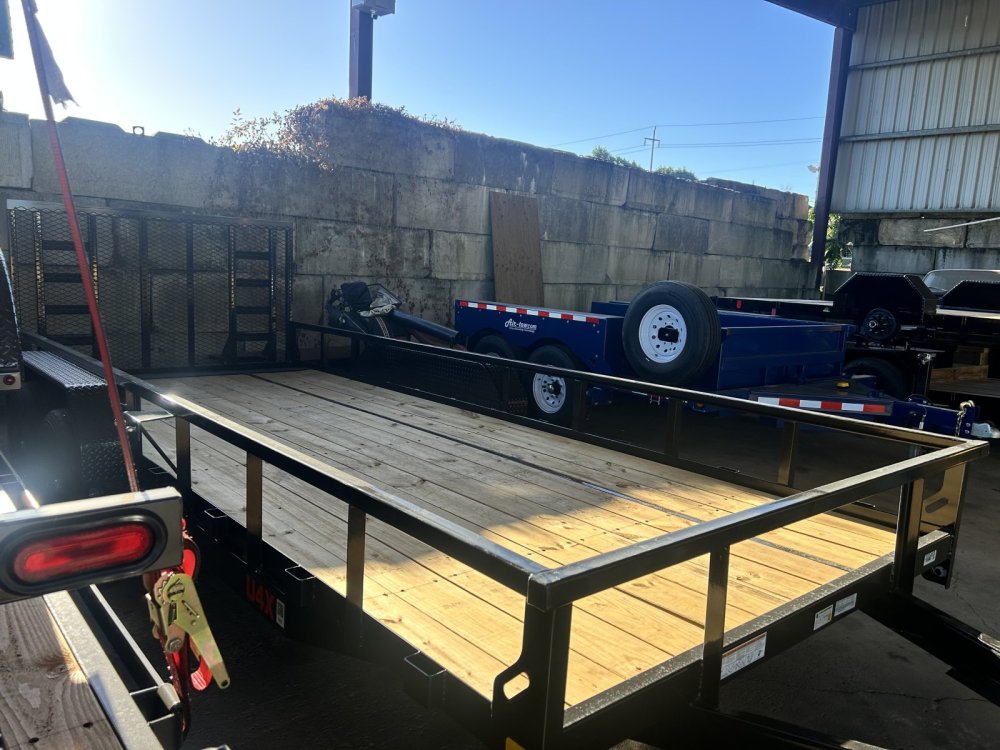

The U4X Tandem Axle Utility Trailer is a 9,990 lbs GVWR, medium-duty utility trailer that is great for hauling all kinds of things: Hauling your UTV's and ATV's, lawn mowers, materials, or even a small tractor with your half ton or bigger truck. The U4X deck is 18' long and 83 inches wide, and has 11" tall sides topped with 2" square tubing and has stake pockets and weighs 2,700 lbs, so it's haulable with a half ton or bigger truck. The U4X has an 11" tall 2" square tubing top-rail on the front and sides of the trailer, and has hooks on the bottom corners of the deck for easy tying down of cargo.

Up front the U4X hooks to your vehicle with a 2 5/16" DEMCO EZ-Latch adjustable coupler, mounted to a 4" channel wrap tongue and a 5" x 3" x 1/4" steel angle mainframe. The treated wood floor deck is supported by 3" x 2" Angle crossmembers spaced at 16" apart. A 7k drop leg jack raises and lowers the front of the trailer.

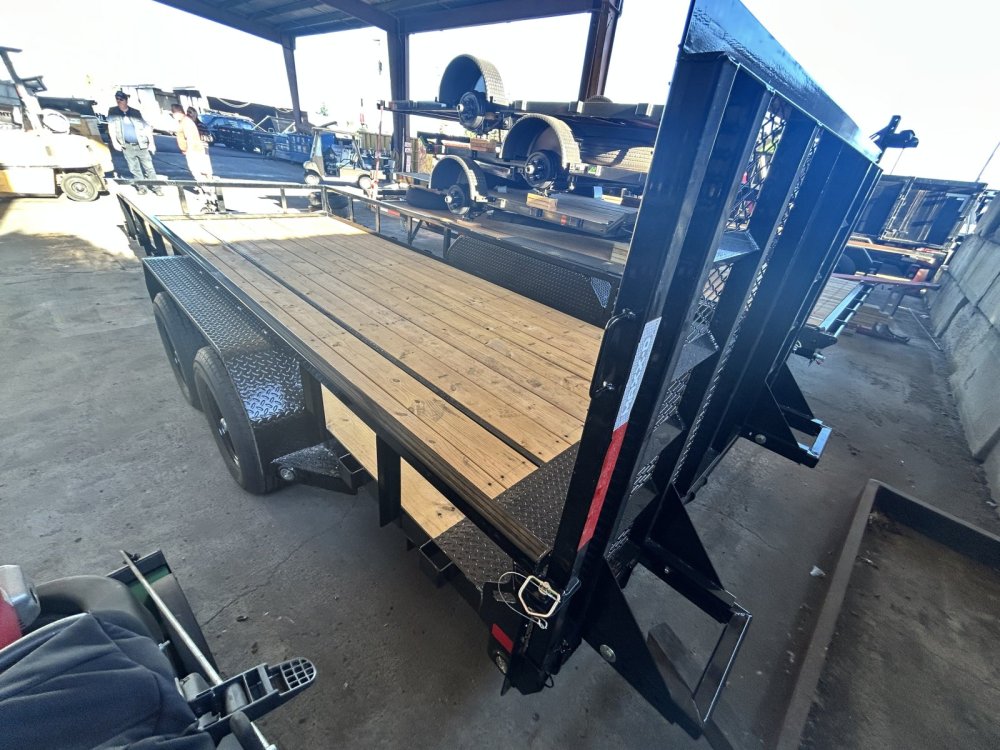

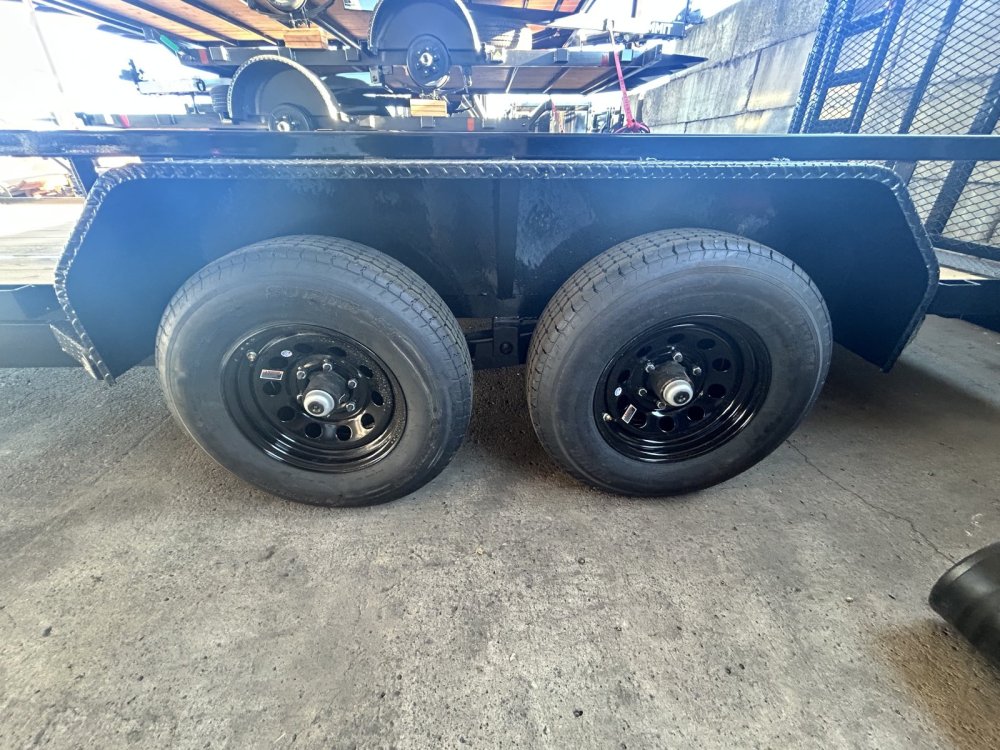

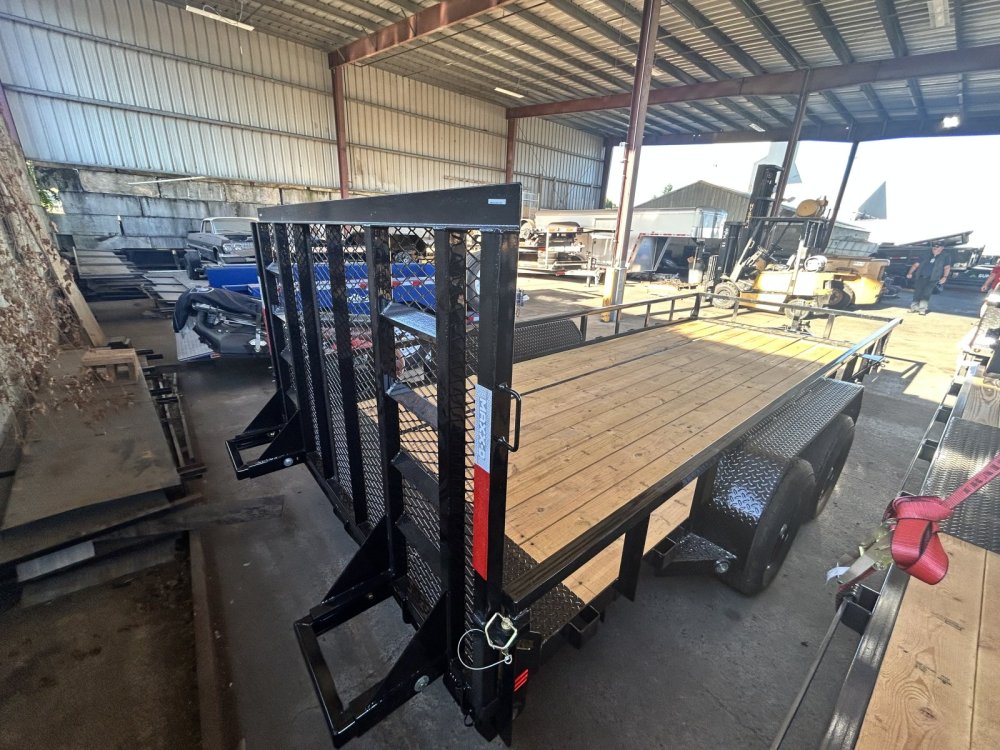

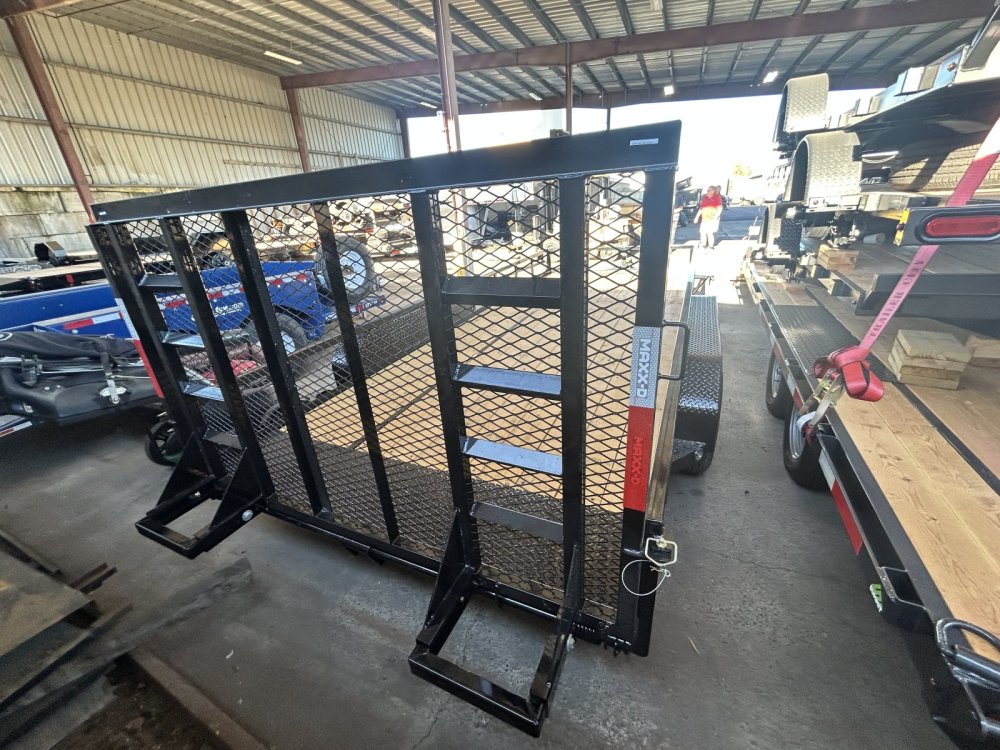

Two 5,200 lb brake axles paired with 225/75 radial tires carry the U4X down the road, and a heavy-duty spring-assisted 4' tall steel mesh gate in the rear makes loading your stuff super simple and easy. Along with steel diamond plate fenders, this trailer has clear LED running lights on the sides and in the rear bumper as well.

Like all of MAXX-D trailers, the U4X is 100% built in Texas, and is ready to get work done. MAXX-D builds trailers for the working person.

Highlights:

• 2 5/16" DEMCO EZ-Latch adjustable coupler
• 2" Square Tube Top Rails
• 2 x 5.2K Brake Axles
• 2x8 Treated Wood Floor
• Slipper Spring Suspension

Trailer Specifications:

• Axles: 2 x 5.2K Brake Axles
• Deck Height: 20"
• Jack: 7K Drop-Leg Jack
• Floor: 2x8 Treated Wood Floor
• Top Rail: 2" Square Tube Top Rails
• Gate: 1' Dovetail/4' Equipment Spring Gate
• Frame: 2x3x3/16" Angle Frame
• Crossmembers: 2x3x3/16" Angle Crossmembers
• Overall Length: 265"
• Overall Width: 83"
• Tongue: 5" Channel Wrap Tongue
• Coupler: 2 5/16" DEMCO EZ-Latch adjustable coupler
• Suspension: Slipper Spring Suspension
• Tires: ST225/75R15 D Radial Tires
• Spare: Optional
• Spare Mount: Standard
• Brakes: Electric
• Fenders: Double Broke Diamond Plate Fenders
• Paint: Durable powder-coated finish
• Plug: 7 Blade RV Plug
• Lights: Flushmount LEDs with standard wiring
• Warranty: 5-2 Warranty Structure: 5-year frame/structure coverage and 2-year general component coverage.
